How to learn software Design and Architecture - Roadmap

The Full-stack Software Design & Architecture Map

Intro

The truth is:
Software design and architecture is a huge topic
Understanding how to:
  • Architect a system to serve the needs of its users
  • Write code that's easy to change
  • Write code that's easy to maintain
  • Write code that's easy to test
... is very hard. The breadth of learning required is just so large.
And even though you know how to write code to make things work at least once, the bigger challenge is to figure out how to write code that makes it easy to change in order to keep up with the current requirements.
Anytime I'm faced with a complex problem, I go back to first principles.

First Principles

First principles is the most effective way to break down problems.
It works by deconstructing a problem all the way down to the atomic level where we can't deconstruct it anymore, and then reconstructing a solution from the parts that we're absolutely sure are true.
So let's apply it to software by first stating the goal.
What is the primary goal of software?
The goal of software is to continually produce something that satisfies the needs of its users, while minimizing the effort it takes to do so.
I fought with coming up with the best definition for a long time, and I'm prepared to argue with you about why I think that's accurate.
Software that doesn't serve the needs of its users, simply isn't good software.
And since the needs of our users changes often, it's important to make sure that software was designed in order to be changed.
If software cannot be changed (easily), that makes it bad software, because it prevents us from satisfying the current needs of our users.
We've established that design matters, and it's important to learn how to produce well-designed software, but it can be a long road.
In this article, I'd like to present to you what I believe are the concrete pillars of software design and architecture.
Before I show you the map, let me show you the stack, each layer builds on top of the foundation of the previous one.
In the stack, I've included examples to some of the most important concepts at that layer, but not all (because there are way too many).
Now, check out the map. While I think the stack is good to see the bigger picture, the map is a little bit more detailed, and as a result, I think it's more useful.

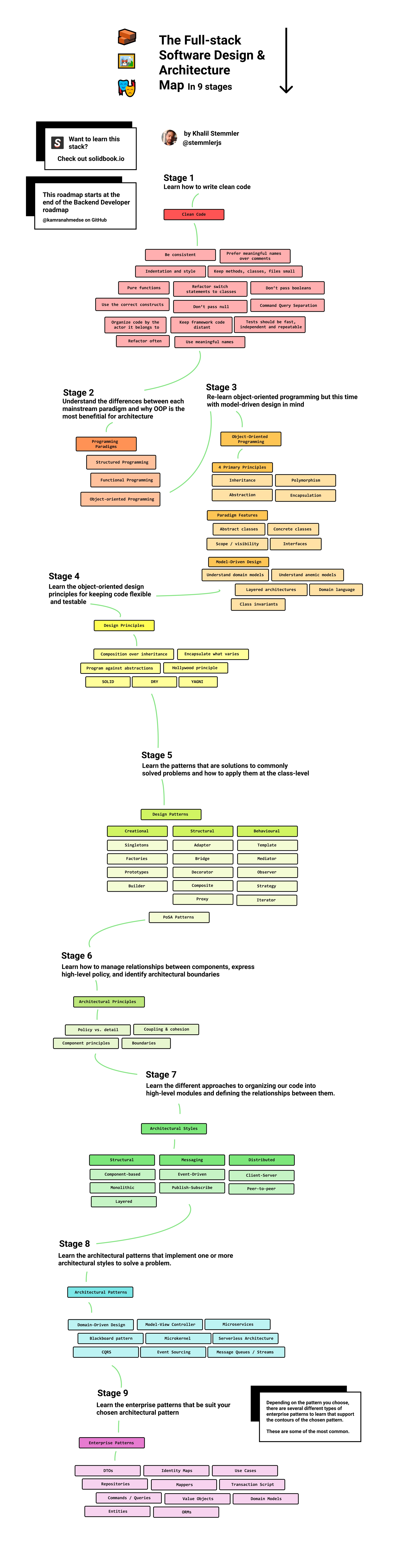

The Full-stack Software Design & Architecture Map

Below is the map for software design and architecture.

Stage 1: Clean code

The very first step towards creating long-lasting software is figuring out how to write clean code.
If you ask anyone what they think constitutes clean code, you'll probably get a different answer every time. A lot of times, you'll hear that clean code is code that is easy to understand and change. At the low-level, this manifests in a few design choices like:
  • being consistent
  • preferring meaningful variable, method and class names over writing comments
  • ensuring code is indented and spaced properly
  • ensuring all of the tests can run
  • writing pure functions with no side effects
  • not passing null
  • ...
These may seem like small things. In order to keep the structure of our project stable over time, things like indentation, small classes and methods, and meaningful names, pay off a lot in the long run.
If you ask me, this aspect of clean code is about having good coding conventions and following them.
I belive that's only one aspect of writing clean code.
My definitive explanation of clean code consists of:
  • 🧠 Your developer mindset (empathy, craftsmanship, growth mindset, design thinking)
  • ⚙️ Your coding conventions (naming things, refactoring, testing, etc)
  • 🤹🏼 Your skills & knowledge (of patterns, principles, and how to avoid code smells and anti-patterns)
Getting into the right mindset is incredibly important if you want to write clean code. One requirement is that you should care enough to learn about the business you're writing code within. If we don't care about the domain enough to understand it, then how can we be sure we're using good names to represent domain concepts? How can we be sure that we've accurately captured the functional requirements?
If we don't care about the code that we're writing, it's a lot less likely that we're going to implement essential coding conventions, have meaningful discussions, and ask for feedback on our solutions.
We often think that code is solely written to serve the needs of the end user, but we forget the other people we write code for: us, our teammates, and the project's future maintainers. Having an understanding of the principles of design and how human psychology decides what is good and bad design, will help us write better code.
So essentially, the best word that describes this step of your journey? Empathy.
Once we've got that down, learn the tricks of the trade and continue to improve them them over time by improving your knowledge of the essential software development patterns and principles.

Learning resources

  • Clean Code, by Robert C. Martin
  • Refactoring, by Martin Fowler (2nd edition)
  • The Pragmatic Programmer, by Andy Hunt and Dave Thomas
  • The Design of Everyday Things, by Don Norman
The best resource to learn how to write clean code is Uncle Bob's book, "Clean Code".

Stage 2: Programming Paradigms

Now that we're writing readable code that's easy to maintain, it would be a good idea to really understand the 3 major programming paradigms and the way they influence how we write code.
In Uncle Bob's book, "Clean Architecture", he brings attention to the fact that:
  • Object-Oriented Programming is the tool best suited for defining how we cross architectural boundaries with polymorphism and plugins
  • Functional programming is the tool we use to push data to the boundaries of our applications
  • and Structured programming is the tool we use to write algorithms
This implies that effective software uses a hybrid all 3 programming paradigms styles at different times.
While you could take a strictly functional or strictly object-oriented approach to writing code, understanding where each excels will improve the quality of your designs.
If all you have is a hammer, everything seems like a nail.

Learning resources

  • Clean Architecture, by Robert C. Martin
  • Domain Modeling Made Functional, by Scott Wlaschin
  • Concepts of Programming Languages, Robert W. Sebesta (10th edition)

Stage 3: Object-Oriented Programming

It's important to know how each of the paradigms work and how they urge you to structure the code within them, but with respect to architecture, Object-Oriented Programming is the clear tool for the job.
Not only does Object-Oriented programming enable us to create a plugin architecture and build flexibility into our projects; OOP comes with the 4 principles of OOP (encapsulation, inheritance, polymorhism, and abstraction) that help us create rich domain models.
Most developers learning Object-Oriented Programming never get to this part: learning how to create a software implementation of the problem domain, and locating it in the center of a layered web app.
Functional programming can seem like the means to all ends in this scenario, but I'd recommend getting acquainted with model-driven design and Domain-Driven Design to understand the bigger picture on how object-modelers are able to encapsulate an entire business in a zero-dependency domain model.
Why is that a huge deal?
It's huge because if you can create a mental-model of a business, you can create a software implementation of that business.

Learning resources

  • Object-Design Style Guide, by Matthias Noback
  • Clean Architecture, by Robert C. Martin
  • Domain-Driven Design, by Eric Evans

Stage 4: Design Principles

At this point, you're understanding that Object-Oriented Programming is very useful for encapsulating rich domain models and solving the 3rd type of "Hard Software Problems"- Complex Domains.
But OOP can introduce some design challenges:
  • When should I use composition?
  • When should I use inheritance?
  • When should I use an abstract class?
Design principles are really well-established and battle-tested object-oriented best practices that you use as railguards.
Some examples of common design principles you should familiarize yourself with are:
Make sure to come to your own conclusions, though. Don't just follow what someone else says you should do. Make sure that it makes sense to you.

Learning resources

  • Head First Design Patterns, by various authors
  • GoF Design Patterns, by various authors

Stage 5: Design Patterns

Just about every problem in software has been categorized and solved already. We call these patterns: design patterns, actually.
There are 3 categories of design patterns: creational, structural, and behaviour.

Creational

Creational patterns are patterns that control how objects are created.
Examples of creational patterns include:
  • The Singleton pattern, for ensuring only a single instance of a class can exist
  • The Abstract Factory pattern, for creating an instance of several families of classes
  • The Prototype pattern, for starting out with an instance that is cloned from an existing one

Structural

Structural patterns are patterns that simplify how we define relationships between components.
Examples of structural design patterns include:
  • The Adapter pattern, for creating an interface to enable classes that normally can't work together, to work together.
  • The Bridge pattern, for splitting a class that should actually be one or more, into a set of classes that belong to a hierarchy, enabling the implementations to be developed independently of each other.
  • The Decorator pattern, for adding responsibilities to objects dynamically.

Behavioural

Behavioural patterns are common patterns for facilitating elegant communication between objects.
Examples of behavioural patterns are:
  • The Template pattern, for deferring the exact steps of an algorithm to a subclass.
  • The Mediator pattern, for defining the exact communication channels allowed between classes.
  • The Observer pattern, for enabling classes to subscribe to something of interest, and to be notified when a change occurred.

Design pattern criticisms

Design patterns are great and all, but sometimes they can an additional complexity to our designs. It's important to remember YAGNI and attempt to keep our designs as simple as possible. Only use design patterns when you're really sure you need them. You'll know when you will.
If we know what each of these patterns are, when to use them, and when to not even bother using them, we're in good shape to begin to understand how to architect larger systems.
The reason behind that is because architectural patterns are just design patterns blown-up in scale to the high-level, where design patterns are low-level implementations (closer to classes and functions).

Learning resources

Stage 6: Architectural Principles

Now we're at a higher level of thinking beyond the class level.
We now understand that the decisions we make towards organzing and building relationships between components at the high-level and the low-level, will have a significant impact on the maintainability, flexibility, and testability of our project.
Learn the guiding principles that helps you build in the flexibility that your codebase needs in order to be able to react to new features and requirements, with as little effort as possible.
Here's what I'd recommend learning right off the bat:
  • Component design principles: The Stable Abstraction Principle, The Stable Dependency Principle, and The Acyclic Dependency Principle, for how to organize components, their dependencies, when to couple them, and the implications of accidentally creating dependency cycles and relying on unstable components.
  • Policy vs. Detail, for understanding how to separate the rules of your application from the implementation details.
  • Boundaries, and how to identify the subdomains that the features of your application belongs within.
Uncle Bob discovered and originally documented many of these principles, so the best resource to learn about this is again, "Clean Architecture".

Learning resources

  • Clean Architecture, by Robert C. Martin

Stage 7: Architectural Styles

Architecture is about the stuff that matters.
It's about identifying what a system needs in order for it to be successful, and then stacking the odds of success by choosing the architecture that best fits the requirements.
For example, a system that has a lot of business logic complexity would benefit from using a layered architecture to encapsulate that complexity.
A system like Uber needs to be able to handle a lot of real time-events at once and update drivers' locations, so publish-subscribe style architecture might be most effective.
I'll repeat myself here because it's important to note that the 3 categories of architectural styles are similar to the 3 categories of design patterns, because architectural styles are design patterns at the high-level.

Structrual

Projects with varying levels of components and wide-ranging functionality will either benefit or suffer from adopting a structural architecture.
Here are a few examples:
  • Component-based architectures emphasize separation of concerns between the individual components within a system. Think Google for a sec. Consider how many applications they have within their enterprise (Google Docs, Google Drive, Google Maps, etc). For platforms with lots of functionality, component-based architectures divide the concerns into loosely coupled independent components. This is a horizontal separation.
  • Monolithic means that the application is combined into a single platform or program, deployed altogether. Note: You can have a component-based AND monolithic architecture if you separate your applications properly, yet deploy it all as one piece.
  • Layered architectures separate the concerns vertically by cutting software into infrastructure, application, and domain layers.
An example of cutting the concerns of an application vertically by using a layered architecture. Read here for more information on how to do this.

Messaging

Depending on your project, messaging might be a really important component to the success of the system. For projects like this, message-based architectures build on top of functional programming principles and behavioural design patterns like the observer pattern.
Here are a few examples of message-based architectural styles:
  • Event-Driven architectures view all signficant changes to state as events. For example, within a vinyl-trading app, a offer's state might change from "pending" to "accepted" when both parties agreee on the trade.
  • Publish-subscribe architectures build on top of the Observer design pattern by making it the primary communication method between the system itself, end-users / clients, and others systems and components.

Distributed

A distributed architecture simply means that the components of the system are deployed separately and operate by communicating over a network protocol. Distributed systems can be very effective for scaling throughput, scaling teams, and delegating (potentially expensive tasks or) responsibility to other components.
A few examples of distributed architectural styles are:
  • Client-server architecture. One of the most common architectures, where we divide the work to be done between the client (presentation) and the server (business logic).
  • Peer-to-peer architectures distribute application-layer tasks between equally-privileged participants, forming a peer-to-peer network.

Learning resources

  • Clean Architecture, by Robert C. Martin
  • Software Architect's Handbook, by Joseph Ingeno

Stage 8: Architectural Patterns

Architectural patterns explain in greater tactical detail how to actually implement one of those architectural styles.
Here are a couple of examples of architectural patterns and the styles that they inherit from:
  • Domain-Driven Design is an approach to software development against really complex problem domains. For DDD to be most successful, we need to implement a layered architecture in order to separate the concerns of a domain model from the infrastrural details that makes the application actually run, like databases, webservers, caches, etc.
  • Model-View Controller is probably the most well-known architectural pattern for developing user interface-based applications. It works by dividing the app into 3 components: model, view, and controller. MVC is incredibly useful when you're first starting out, and it helps you piggyback towards other architectures, but there hit's a point when we realize MVC isn't enough for problems with lots of business logic.
  • Event sourcing is a functional approach where we store only the transactions, and never the state. If we ever need the state, we can apply all the transactions from the beginning of time.

Learning resource

  • Domain-Driven Design, by Eric Evans
  • Implementing Domain-Driven Design, by Vaughn Vernon

Stage 9: Enterprise patterns

Any architectural pattern you choose will introduce a number of constructs and technical jargon to familiarize yourself with and decide on whether it's worth the effort to use or not.
Taking an example that many of us know, in MVC, the view holds all the presentation layer code, the controller is translates commands and queries from the view into requests that are handled by the model and returned by the controller.
Where in the Model (M) do we handle these things?:
  • validation logic
  • invariant rules
  • domain events
  • use cases
  • complex queries
  • and business logic
If we simply use an ORM (object-relational mapper) like Sequelize or TypeORM as the model, all that important stuff to gets left to interpretation on where it should go, and it finds itself in some unspecified layer between (what should be a rich) model and the controller.
Taken from "3.1 - Slim (Logic-less) models" in solidbook.io.
If there's something I've learned so far in my journey going beyond MVC, it's that there is a construct for everything.
For each of those things that MVC fails to address, in Domain-Driven Design specifically, there exist several enterprise patterns to solve them. For example:
  • Entities describe models that have an identity.
  • Value Objects are models that have no identity, and can be used in order to encapsulate validation logic.
  • Domain Events are events that signify some relevant business event occurring, and can be subscribed to from other components.
Depending on the architectural style you've chosen, there are going to be a ton of other enterprise patterns for you to learn in order to implement that pattern to it's fullest potential.

Learning resources

These are just a few different learning resources mostly focused on Domain-Driven Design and Enteprise Application Architecture. But this is where there is the most to learn, and where you can dive the deepest in your learning, because it builds ontop of everything we've learned thus far.
  • Patterns of Enterprise Application Architecture, by Martin Fowler
  • Enterprise Integration Patterns, by Gregor Hohpe
  • Domain Driven Design, by Eric Evans
  • Implementing Domain-Driven Design, by Vaughn Vernon
